Aluminum Plate Machining

Vacuum Workholding Eliminates Aluminum Part Distortion from Traditional Workholding

Aluminum machining fails when the part moves or deforms under pressure. Clamp pressure distorts the thin plate, cutting forces shift the material, and surface finish and tolerances suffer as a result. Machining aluminum requires a foundation that respects the material’s sensitivity to localized stress.

VacFixture fixes the foundation. The Vacuum Fixture System (VFS) holds parts flat across the full surface, creating a stable base for CNC aluminum machining and custom aluminum machining. Consistent workholding leads to consistent results.

Shop by Machine
Talk to an Engineer

Why Traditional Workholding Causes Aluminum Machining Problems

Machining aluminum parts is a high-speed process, but stability often breaks down under load. In CNC aluminum cutting, common issues include:

  • Clamp pressure distorts the stock and ultimately the part
  • Parts shift during aggressive machining operations
  • Vibration affects the quality of the final surface finish
  • Flatness is lost across the machined aluminum plate
  • Extra finishing passes are required to correct movement-induced errors.

The problems aren’t with aluminum machining, but with how the part is held.

Edge-clamping a large thin plate pulls the middle up (the ‘potato chip’ effect every aluminum machinist has seen). Clamp the four corners of a thin plate and the center bows during the cut.

Thick plates have the opposite problem. The plate sits flat but the regions between point-clamps aren’t supported underneath. Spindle load sets up harmonics in the unsupported areas, which shows up as chatter in the finish and accelerated tool wear.

Standard workholding methods create the failure modes. The aluminum is doing what it’s supposed to do. The setup is what’s failing.

A Better Approach to CNC Aluminum Machining

CNC aluminum machining performs best when the part is supported across its full surface. The VFS replaces clamps with distributed vacuum pressure. The material stays flat, and cutting forces are absorbed across the entire contact area.

With a vacuum fixture system:

  • Parts stay perfectly flat during CNC aluminum cutting.
  • Clamp-induced distortion is eliminated.
  • Lateral cutting forces are evenly distributed.
  • The base setup remains consistent between production runs.

The VFS creates a stable environment for machining aluminum parts at the speeds modern spindles are capable of reaching. It is especially effective in high speed machining environments where instability becomes visible in the finish.

Learn How VFS Works

Built for Aluminum Plate and Sheet Machining

Vacuum workholding is most effective on flat stock. The VFS is engineered for:

  • Aluminum tooling plate and high-precision ground stock.
  • Machined aluminum plate with complex pocketing.
  • CNC cutting aluminum sheet for high-mix production.
  • Custom aluminum machining workflows that require rapid changeovers.

Full-surface support keeps the material stable across the entire part, whether you’re running large plates or nested parts. For shops performing precision CNC machining daily, the VFS removes the need to rebuild fixtures between jobs.

What Changes When Aluminum Stays Flat

When the part stays flat, everything improves.

  • Better surface finish
  • More consistent tolerances
  • Faster feed rates
  • Less scrap
  • Simpler programming

Flatness drives performance in CNC aluminum machining.

When Vacuum Workholding Makes Sense for Aluminum Machining

Vacuum workholding is a strong fit when:

  • Parts have enough surface area to seal
  • Material is flat or can be skimmed
  • Surface finish and consistency matter
  • High-speed CNC aluminum machining is required

For many setups, combining a vacuum with mechanical fixturing provides the most control. Vacuum holds the surface, while fixtures manage edge forces.

Engineered for Your CNC Aluminum Machine

VacFixture plates are designed for the machines most commonly used in CNC aluminum machining:

Brother

Speedio S300, S500, S700.

Shop Brother
Haas

VF-2, VF-3, VF-4 and more.

Shop Haas

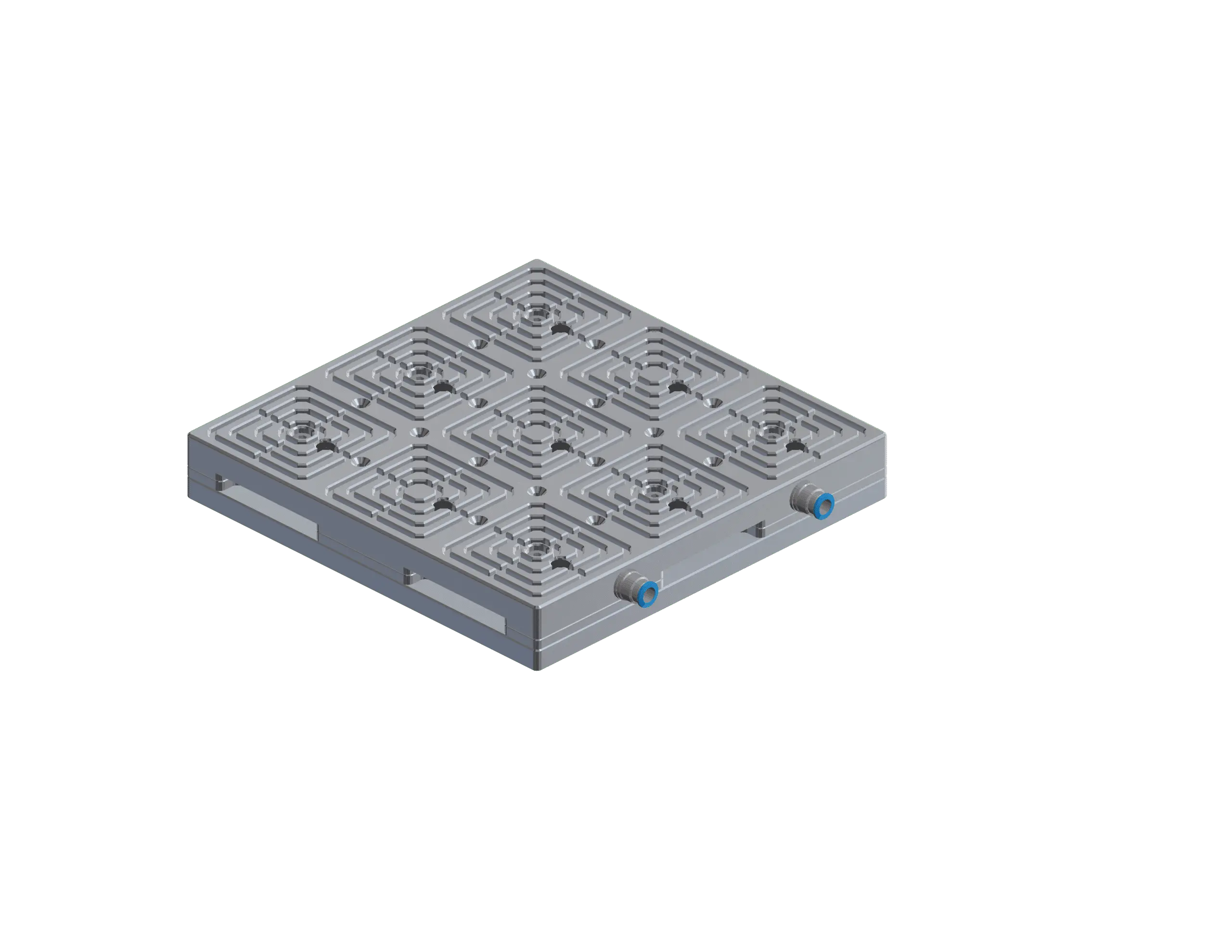

Fanuc

Robodrill Short, Medium, Long Bed.

Shop Fanuc
DN Solutions

DNM and BVM series.

Shop DN Solutions
Datron

Neo, 500×500, 700×500.

Shop Datron
Hurco

VMX series.

Shop Hurco
General / Kits

Pre-configured vacuum fixture kits for any machine.

Shop General / Kits

See How VFS Fits Your Aluminum Machining Workflow

If machining aluminum parts feels inconsistent, the issue is usually the setup. A stable workholding foundation lets you cut faster, hold tighter tolerances, and reduce variation without adding complexity.

Browse plates built for your machine or talk to an engineer about your current process.

Shop by Machine
Talk to an Engineer

Aluminum Machining FAQs

Aluminum machining introduces specific challenges regarding part deformation and vibration. These answers address the engineering logic required to maintain flatness and stability when using an aluminum vacuum table for production.

Supporting the part across its full surface area is the most effective method. Vacuum workholding distributes force evenly, which reduces the internal stress and distortion associated with traditional mechanical clamps.

Internal stresses are particularly common in aluminum bar and plate stock. When you begin cutting, internal stresses can release and cause the material to move mid-program, even if the initial vacuum holds. The standard practice is a 3-step skim before final machining: face 0.5 to 1.0mm from the top, flip and remove the same from the bottom, then return to the top for a final pass. This relieves stress before tolerance-critical features get cut. See our Top 10 Vacuum Chuck Workholding Tips article for the full skim workflow.

Yes. An aluminum vacuum table is a highly effective tool for holding flat parts. It minimizes vibration and ensures the part remains flat throughout the entire toolpath, leading to superior surface finishes.

Reducing distortion requires even workholding pressure, minimized clamping force, and controlled cutting strategies. Using the Vacuum Fixture System addresses these factors by holding the part flat without the ‘pinching’ effect of vises or toe clamps.

Holding force is a function of surface area. For aluminum plate and sheet machining, the surface area is typically more than sufficient to resist lateral tool pressure when the vacuum chuck workholding is managed correctly.

Milling aluminum successfully depends on controlling both cutting forces and workholding stability. High spindle speeds, light radial engagement, and sharp tooling help reduce stress on the material, but the setup is just as important.

The most reliable approach is to support the part across its full surface. Vacuum workholding keeps the material flat during the cut, preventing movement caused by clamp pressure or uneven support. For smaller parts, combining a vacuum with mechanical stops or fixtures improves stability further.
