A pre-configured way into the VacFixture ecosystem. The General Kits work on any machine, including Haas, Brother, Fanuc, Doosan, Datron, and Hurco. Some shops buy a kit before committing to a machine-specific plate. Others keep a kit on the table next to their vises as a permanent vacuum chuck for occasional plate work. Either way, everything you need is in the box: plate, venturi kit, conical inserts, plug packs, and documentation.
Vacuum Fixture Kits for CNC machines
A cost-effective way into VacFixture. Works on any machine
The Three Kits
Three sizes, named for the long axis. Pick the one that fits your table.
The 400
$2,125
A 300 x 400mm vacuum fixture plate. For smaller VMCs, benchtop machines, knee mills, and 4th-axis mounting. The entry kit. Start here if you are new to vacuum workholding or running compact parts.
Includes:
- 300 x 400mm vacuum fixture plate
- Venturi vacuum kit
- Conical insert pack
- Rubber plug pack
- Installation and user manual
The 500
$3,750

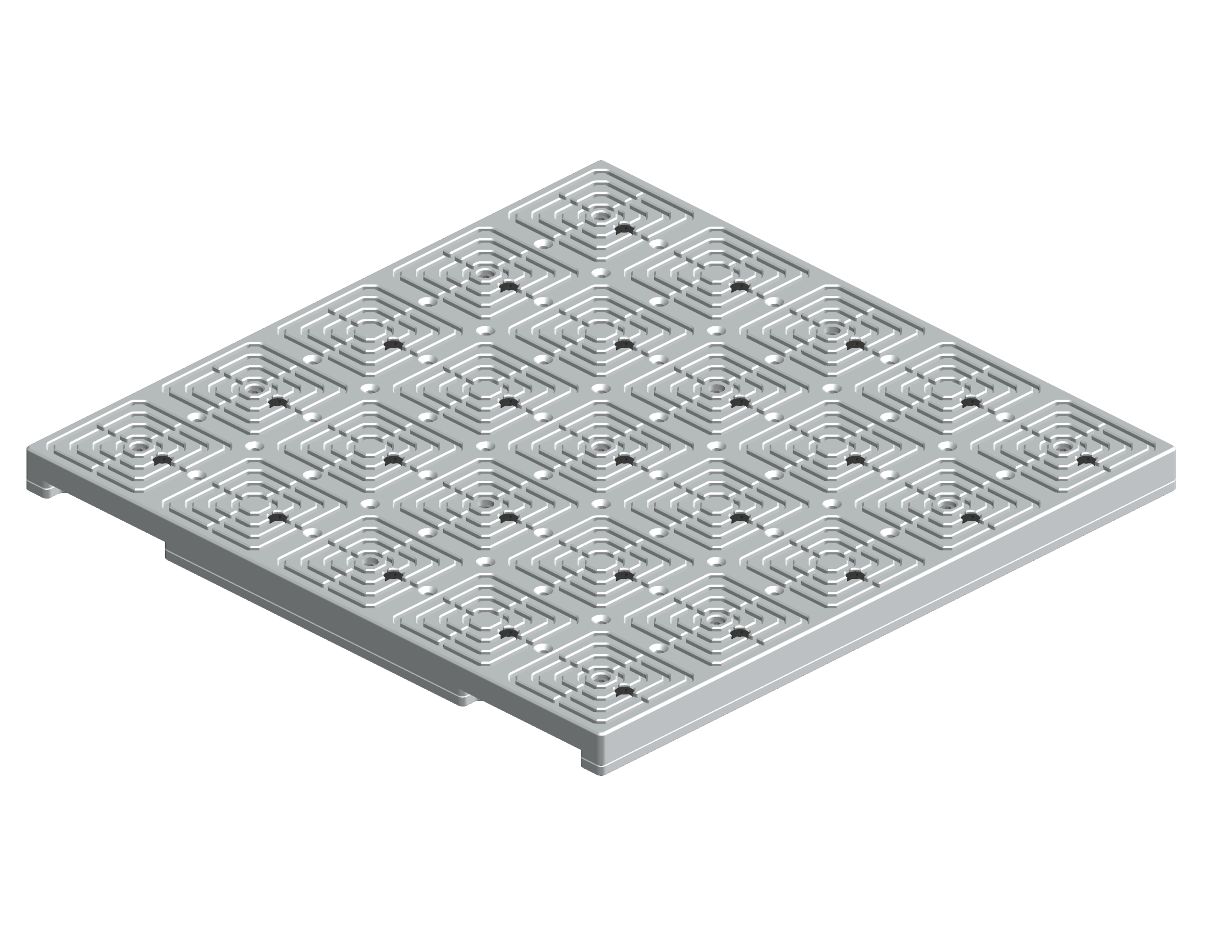

A 500 x 500mm vacuum fixture plate. One of our top-selling SKUs. The square format handles the widest range of part geometries, from long rectangular parts to square plates to irregular shapes that need even vacuum on all sides. Fits most mid-size VMCs.
Includes:
- 500 x 500mm vacuum fixture plate
- Venturi vacuum kit
- Conical insert pack
- Rubber plug pack
- Installation and user manual
The 700
$5,000

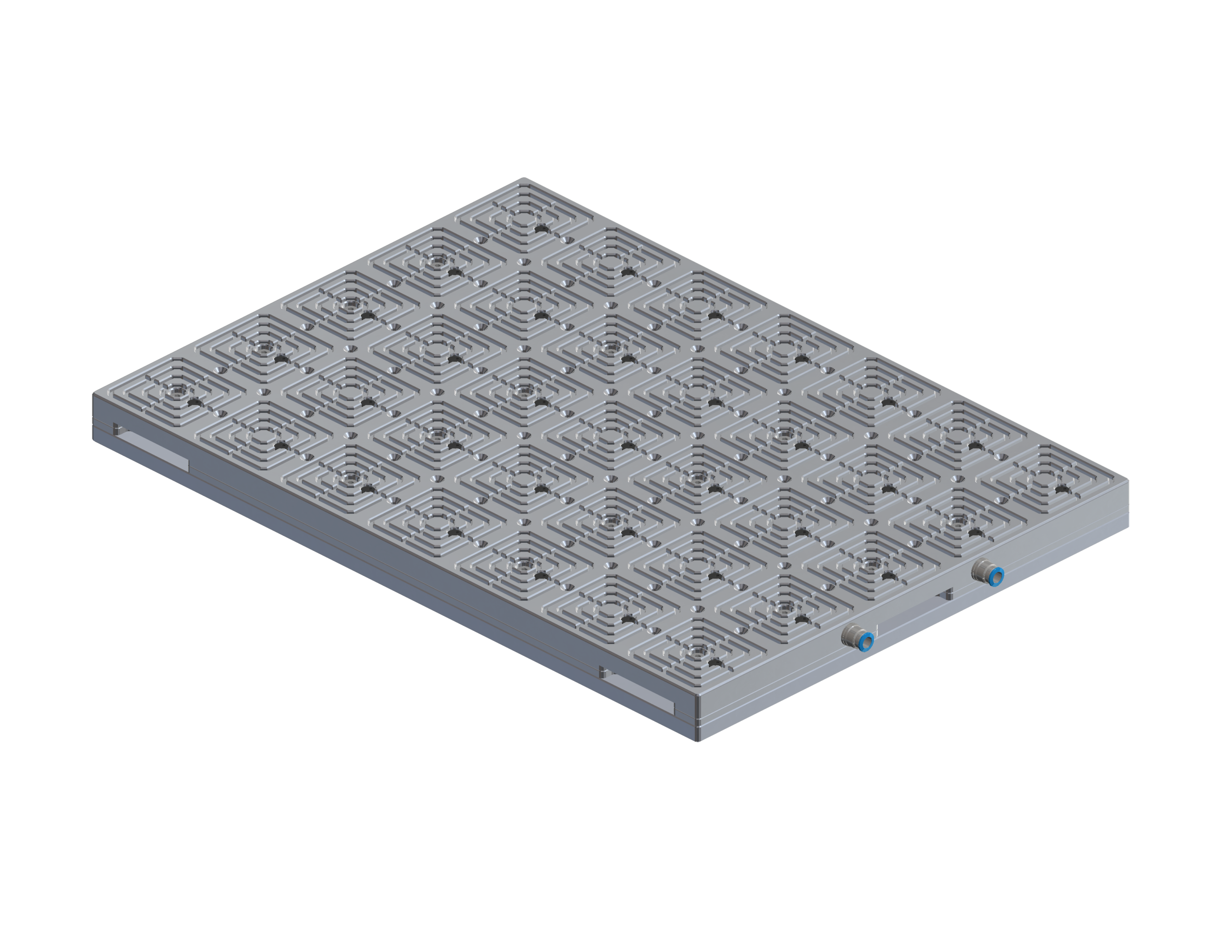

A 500 x 700mm vacuum fixture plate. For full-size VMCs, Haas VF-3 and VF-4, Brother S700, Doosan DNM, and dedicated production setups with a recurring part. Enough vacuum surface area to hold big parts without stacking.
Includes:
- 500 x 700mm vacuum fixture plate
- Venturi vacuum kit
- Conical insert pack
- Rubber plug pack
- Installation and user manual
Standalone Vacuum Fixture Plates
Already have a vacuum supply? Get just the plate
If you’re upgrading from an existing vacuum setup and don’t need the full kit, buy the plate standalone. Available in eight sizes from 300 x 300mm up to 500 x 700mm. Every standalone plate ships with conical inserts and plug packs included.
Standalone plate sizes:
- 300 x 300mm
- 300 x 400mm
- 400 x 400mm
- 400 x 500mm
- 400 x 700mm
- 400 x 800mm
- 500 x 500mm
- 500 x 700mm
Configure Before You Buy You have two choices at checkout
Conical/Threading
M6 is the standard threading; M8 is available as an option. Pick what matches your existing accessories.
Venturi Kit
Add or skip. Kits include a venturi by default. Skip it if you’ve already got a vacuum pump or your machine has built-in vacuum.
Custom Sizes
None of these fit? We build custom
Send us your machine model, your table dimensions, and the part you’re trying to hold. We’ll tell you what’s possible and what it costs.
Got Questions about Brother Speedio Vacuum Plates?
Shop the plates above or talk to an engineer. We build vacuum fixture plates daily, so we’ve seen your question before.
Vacuum fixture kit FAQs
Common questions about vacuum fixture kits for CNC machines, including sizing, what’s included, and how a complete vacuum workholding kit is set up.
A CNC vacuum fixture kit includes everything needed to run vacuum workholding on a machine. Each kit typically includes:
- A vacuum fixture plate
- A venturi vacuum system
- Conical insert pack
- Vacuum plug pack
- Installation and setup documentation
It’s a complete vacuum workholding kit in one package, with no additional hardware required to get started.
The right size depends on your machine table and the parts you plan to run. A vacuum fixture kit should match:
- The available table space
- The size of the parts being machined
- The amount of sealed surface area needed for holding force
Oversizing a plate increases leakage area and reduces efficiency. Matching the kit size to your parts provides better holding performance.
Yes. A vacuum fixture kit for CNC machines is designed to work across a wide range of equipment. These kits mount to standard T-slot tables and can be used on:
- Vertical machining centers
- Benchtop CNC machines
- Knee mills
- 4th-axis setups
A pre-configured vacuum plate is a flexible option for shops running different machines.
Yes. A vacuum fixture kit is the most common starting point for shops new to vacuum workholding. It provides:
- A complete, ready-to-run setup
- No need to source components separately
- A way to test vacuum workholding before committing to machine-specific plates
Many shops start with a kit, then expand into dedicated plates or custom setups as their workflow develops.
