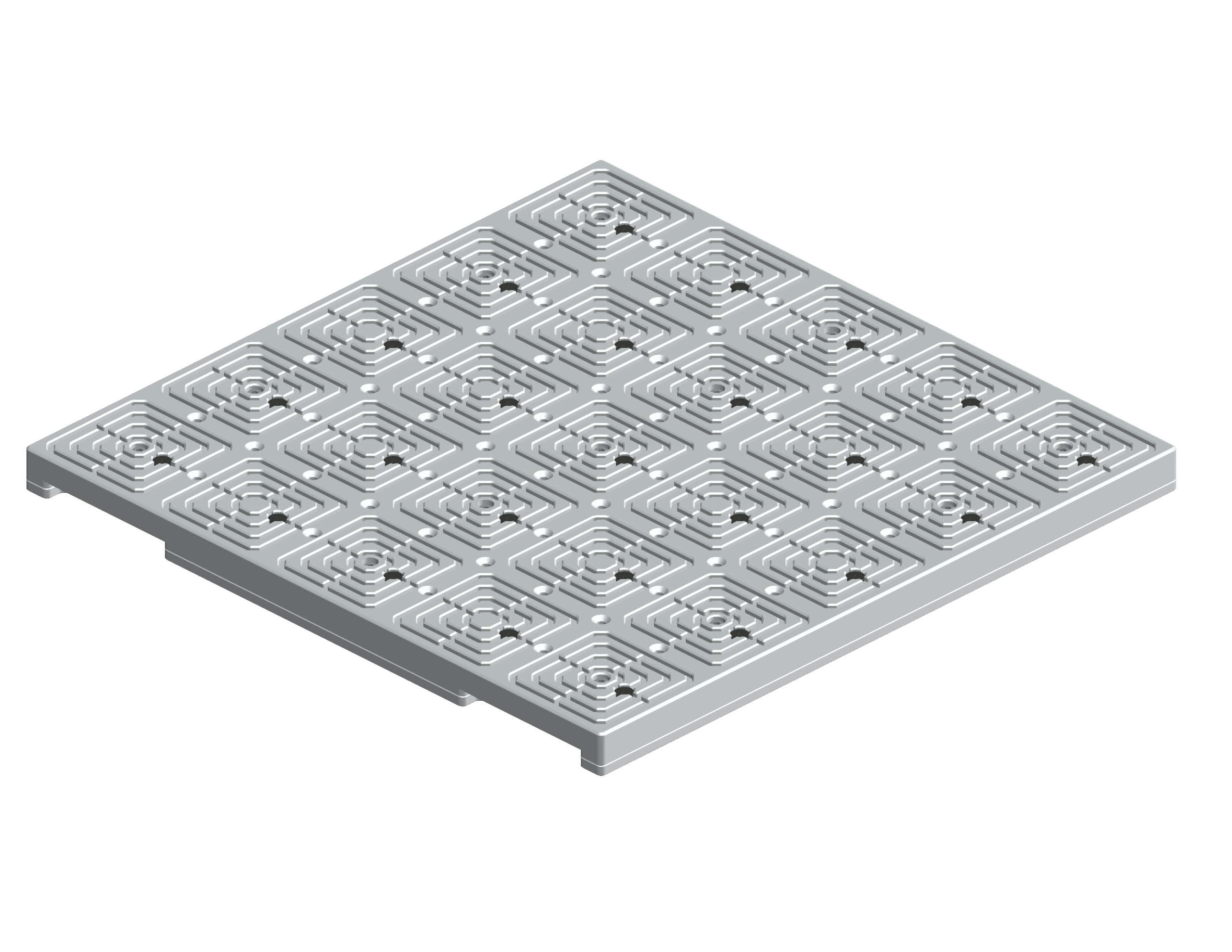

Vacuum Fixture Plate for Datron Machining Centers
The Simplest Way to Add Vacuum Chucking and High-Density Workholding to Your Datron Machining Centers.
Upgrade your Datron with a purpose-built vacuum fixture plate that eliminates the need to take your vacuum chuck on and off. The VFS integrates vacuum chucking channels directly into the fixture plate, giving you fast setups, secure holding force, and streamlined CNC vacuum fixturing—all in one system.
Whether you’re running prototypes, thin plates, or production batches, this vacuum fixture system turns your Datron into a high-efficiency workholding platform.
Core Benefits:
- Drop-In install on your Datron Tables
- Built-in vacuum chuck and fixture plate – no change over needed
- Designed to plumb directly into your Datron’s vacuum ports.
- Supports high-density workholding for thin parts, plastics, aluminum, and composite machining
- Full zoned vacuum plate control—plug unused zones with rubber plug packs
Precision & Flexibility with Conical Locators
Every VFS vacuum fixture plate features precision-machined conical locators — our secret weapon for fast changeovers and dead-on repeatability.
- Self-centering alignment
- Better repeatability than traditional dowel pins
- Simplifies swaps between custom fixtures or vacuum workholding
Need to build your own fixtures? Our Conical Insert Packs make it easy to create modular, repeatable custom vacuum fixturing on the same plate system—without losing accuracy.
Build Your Own Custom Fixtures
The VFS isn’t a one-size-fits-all system—it’s a vacuum fixture platform. Use the standard grid plate or start with a blank to create your own application-specific fixtures:
- Use on of our pre-threaded grid plates for fast and flexible setups
- Easily create vise mounting plates – tram your vise once and the enjoy repeatable mounting
- Get a head start on a custom fixture with our blank fixture plates – 18mm thick and full of possibilities in four handy sizes
Whether you’re machining large plates, PCBs, or plastic sheets, this vacuum fixture plate system offers repeatable fixturing, fast swaps, and simplified setups for theDatron.
